System Catalog

You can easily get various schema information from the SQL statement by using the system catalog virtual class. For example, you can get the following schema information by using the catalog virtual class.

-- Classes that refer to the 'b_user' class
SELECT class_name
FROM db_attribute
WHERE domain_class_name = 'db_user';

-- The number of classes that the current user can access
SELECT COUNT(*)
FROM db_class;

-- Attribute of the 'db_user' class
SELECT attr_name, data_type
FROM db_attribute
WHERE class_name = 'db_user';

System Catalog Classes

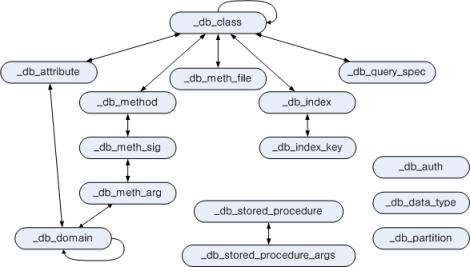

To define a catalog virtual class, define a catalog class first. The figure below shows catalog classes to be added and their relationships. The arrows represent the reference relationship between classes, and the classes that start with an underline (_) are catalog classes.

../_images/image9.png

Added catalog classes represent information about all classes, attributes and methods in the database. Catalog classes are made up of class composition hierarchy and designed to have OIDs of catalog class instances for cross reference.

_db_class

Represents class information. An index for class_name is created.

Attribute Name

Data Type

Description

class_of

object

A class object. Represents a meta information object for the class stored in the system.

class_name

VARCHAR(255)

Class name

class_type

INTEGER

0 for a class, and 1 for a virtual class

is_system_class

INTEGER

0 for a user-defined class, and 1 for a system class

owner

db_user

Class owner

inst_attr_count

INTEGER

The number of instance attributes

class_attr_count

INTEGER

The number of class attributes

shared_attr_count

INTEGER

The number of shared attributes

inst_meth_count

INTEGER

The number of instance methods

class_meth_count

INTEGER

The number of class methods

collation_id

INTEGER

Collation id

tde_algorithm

INTEGER

TDE encryption algorithm 0: NONE, 1: AES, 2: ARIA

sub_classes

SEQUENCE OF _db_class

Class one level down

super_classes

SEQUENCE OF _db_class

Class one level up

inst_attrs

SEQUENCE OF _db_attribute

Instance attribute

class_attrs

SEQUENCE OF _db_attribute

Class attribute

shared_attrs

SEQUENCE OF _db_attribute

Shared attribute

inst_meths

SEQUENCE OF _db_method

Instance method

class_meths

SEQUENCE OF _db_method

Class method

meth_files

SEQUENCE OF _db_methfile

File path in which the function for the method is located

query_specs

SEQUENCE OF _db_queryspec

SQL definition statement for a virtual class

indexes

SEQUENCE OF _db_index

Index created in the class

comment

VARCHAR(2048)

Comment to describe the class

partition

SEQUENCE of _db_partition

Partition information

The following example shows how to retrieve all sub classes under the class owned by user ‘PUBLIC’ (for the child class female_event in the result, see the example in ADD SUPERCLASS Clause).

SELECT class_name, SEQUENCE(SELECT class_name FROM _db_class s WHERE s IN c.sub_classes)
FROM _db_class c
WHERE c.owner.name = 'PUBLIC' AND c.sub_classes IS NOT NULL;
  class_name            sequence((select class_name from _db_class s where s in c.sub_classes))
============================================
  'event'               {'female_event'}

Note

All examples of system catalog classes have been written in the csql utility. In this example, –no-auto-commit (inactive mode of auto-commit) and -u (specifying user DBA) options are used.

% csql --no-auto-commit -u dba demodb

_db_attribute

Represents attribute information. Indexes for class_of, attr_name and attr_type are created.

Attribute Name

Data Type

Description

class_of

_db_class

Class to which the attribute belongs

attr_name

VARCHAR(255)

Attribute name

attr_type

INTEGER

Type defined for the attribute. 0 for an instance attribute, 1 for a class attribute, and 2 for a shared attribute.

from_class_of

_db_class

If the attribute is inherited, the super class in which the attribute is defined is specified. Otherwise, NULL is specified.

from_attr_name

VARCHAR(255)

Inherited attribute. If an attribute name has changed to resolve a name conflict, the original name define in the super class is specified. Otherwise, NULL is specified.

def_order

INTEGER

Order of attributes in the class. Begins with 0. If the attribute is inherited, the order is the one defined in the super class. For example, if class y inherits attribute a from class x and a was first defined in x, def_order becomes 0.

data_type

INTEGER

Data type of the attribute. One of the values specified in the “Data Types Supported by CUBRID” table below.

default_value

VARCHAR(255)

Default value. Stores as a character string regardless of data types. If there is no default value, NULL. If the default value is NULL, NULL is used.

If the data type is an object, ‘volume id | page id | slot id’ is used. If the data type is a collection, ‘{element 1, element 2, … is used.

domains

SEQUENCE OF _db_domain

Domain information of the data type

is_nullable

INTEGER

0 if a not null constraint is configured, and 1 otherwise.

comment

VARCHAR(1024)

Comment to describe the attribute.

Data Types Supported by CUBRID

Value

Meaning

Value

Meaning

1

INTEGER

22

NUMERIC

2

FLOAT

23

BIT

3

DOUBLE

24

VARBIT

4

STRING

25

CHAR

5

OBJECT

31

BIGINT

6

SET

32

DATETIME

7

MULTISET

33

BLOB

8

SEQUENCE

34

CLOB

9

ELO

35

ENUM

10

TIME

36

TIMESTAMPTZ

11

TIMESTAMP

37

TIMESTAMPLTZ

12

DATE

38

DATETIMETZ

18

SHORT

39

DATETIMELTZ

Character Sets Supported by CUBRID

Value

Meaning

0

US English - ASCII encoding

2

Binary

3

Latin 1 - ISO 8859 encoding

4

KSC 5601 1990 - EUC encoding

5

UTF8 - UTF8 encoding

The following example shows how to retrieve user classes (from_class_of.is_system_class = 0) among the ones owned by user ‘PUBLIC’.’

SELECT class_of.class_name, attr_name
FROM _db_attribute
WHERE class_of.owner.name = 'PUBLIC' AND from_class_of.is_system_class = 0
ORDER BY 1, def_order;
class_of.class_name   attr_name
============================================
  'female_event'        'code'
  'female_event'        'sports'
  'female_event'        'name'
  'female_event'        'gender'
  'female_event'        'players'

_db_domain

Represents domain information. An index for object_of is created.

Attribute Name

Data Type

Description

object_of

object

Attribute that refers to the domain, which can be a method parameter or domain

data_type

INTEGER

Data type of the domain (a value in the “Value” column of the “Data Types Supported by CUBRID” table in _db_attribute)

prec

INTEGER

Precision of the data type. 0 is used if the precision is not specified.

scale

INTEGER

Scale of the data type. 0 is used if the scale is not specified.

class_of

_db_class

Domain class if the data type is an object, NULL otherwise.

code_set

INTEGER

Character set (value of table “character sets supported by CUBRID” in _db_attribute) if it is character data type. 0 otherwise.

collation_id

INTEGER

Collation id

enumeration

SEQUENCE OF STRING

String printed enumeration type definition

set_domains

SEQUENCE OF _db_domain

Domain information about the data type of collection element if it is collection data type. NULL otherwise.

_db_charset

Represents charset information.

Attribute Name

Data type

Description

charset_id

INTEGER

Charset ID

charset_name

CHARACTER VARYING(32)

Charset name

default_collation

INTEGER

Default collation ID

char_size

INTEGER

One character’s byte size

_db_collation

The information on collation.

Attribute Name

Data Type

Description

coll_id

INTEGER

Collation ID

coll_name

VARCHAR(32)

Collation name

charset_id

INTEGER

Charset ID

built_in

INTEGER

Built-in or not while installing the product (0: Not built-in, 1: Built-in)

expansions

INTEGER

Expansion support (0: Not supported, 1: Supported)

contractions

INTEGER

Contraction support (0: Not supported, 1: Supported)

uca_strength

INTEGER

Weight strength

checksum

VARCHAR(32)

Checksum of a collation file

_db_method

Represents method information. Indexes for class_of and meth_name are created.

Attribute Name

Data Type

Description

class_of

_db_class

Class to which the method belongs

meth_type

INTEGER

Type of the method defined in the class. 0 for an instance method, and 1 for a class method.

from_class_of

_db_class

If the method is inherited, the super class in which it is defined is used otherwise NULL

from_meth_name

VARCHAR(255)

If the method is inherited and its name is changed to resolve a name conflict, the original name defined in the super class is used otherwise NULL

meth_name

VARCHAR(255)

Method name

signatures

SEQUENCE OF _db_meth_sig

C function executed when the method is called

The following example shows how to retrieve class methods of the class with a class method (c.class_meth_count > 0), among classes owned by user ‘DBA.’

SELECT class_name, SEQUENCE(SELECT meth_name
                            FROM _db_method m
                            WHERE m in c.class_meths)
FROM _db_class c
WHERE c.owner.name = 'DBA' AND c.class_meth_count > 0
ORDER BY 1;
  class_name            sequence((select meth_name from _db_method m where m in c.class_meths))
============================================
  'db_serial'           {'change_serial_owner'}
  'db_authorizations'   {'add_user', 'drop_user', 'find_user', 'print_authorizations', 'info', 'change_owner', 'change_trigg
r_owner', 'get_owner'}
  'db_authorization'    {'check_authorization'}
  'db_user'             {'add_user', 'drop_user', 'find_user', 'login'}
  'db_root'             {'add_user', 'drop_user', 'find_user', 'print_authorizations', 'info', 'change_owner', 'change_trigg
r_owner', 'get_owner', 'change_sp_owner'}

_db_meth_sig

Represents configuration information of C functions on the method. An index for meth_of is created.

Attribute Name

Data Type

Description

meth_of

_db_method

Method for the function information

arg_count

INTEGER

The number of input arguments of the function

func_name

VARCHAR(255)

Function name

return_value

SEQUENCE OF _db_meth_arg

Return value of the function

arguments

SEQUENCE OF _db_meth_arg

Input arguments of the function

_db_meth_arg

Represents method argument information. An index for meth_sig_of is created.

Attribute Name

Data Type

Description

meth_sig_of

_db_meth_sig

Information of the function to which the argument belongs

data_type

INTEGER

Data type of the argument (a value in the “Value” column of the “Data Types Supported by CUBRID” in _db_attribute)

index_of

INTEGER

Order of the argument listed in the function definition. Begins with 0 if it is a return value, and 1 if it is an input argument.

domains

SEQUENCE OF _db_domain

Domain of the argument

_db_meth_file

Represents information of a file in which a function is defined. An index for class_of is created.

Attribute Name

Data Type

Description

class_of

_db_class

Class to which the method file information belongs

from_class_of

_db_class

If the file information is inherited, the super class in which it is defined is used otherwise, NULL

path_name

VARCHAR(255)

File path in which the method is located

_db_query_spec

Represents the SQL statement of a virtual class. An index for class_of is created.

The data type of attribute ‘spec’ is VARCHAR (4096) for prior versions including 10.1 Patch 3.

Attribute Name

Data Type

Description

Classification (10.1 Only)

class_of

_db_class

Class information of the virtual class

spec

VARCHAR(1073741823)

SQL definition statement of the virtual class

10.1 Patch 4 or later

VARCHAR(4096)

10.1 Patch 3 or earlier

_db_index

Represents index information. An index for class_of is created.

Attribute Name

Data Type

Description

class_of

_db_class

Class to which to index belongs

index_name

varchar(255)

Index name

is_unique

INTEGER

1 if the index is unique, and 0 otherwise.

key_count

INTEGER

The number of attributes that comprise the key

key_attrs

SEQUENCE OF _db_index_key

Attributes that comprise the key

is_reverse

INTEGER

1 for a reverse index, and 0 otherwise.

is_primary_key

INTEGER

1 for a primary key, and 0 otherwise.

is_foreign_key

INTEGER

1 for a foreign key, and 0 otherwise.

filter_expression

VARCHAR(255)

The conditions of filtered indexes

have_function

INTEGER

1 for a function index, and 0 otherwise.

comment

VARCHAR (1024)

Comment to describe the index

status

INTEGER

Index status

The following example shows how to retrieve names of indexes that belong to the class.

SELECT class_of.class_name, index_name
FROM _db_index
ORDER BY 1;
  class_of.class_name   index_name
============================================
  '_db_attribute'       'i__db_attribute_class_of_attr_name'
  '_db_auth'            'i__db_auth_grantee'
  '_db_class'           'i__db_class_class_name'
  '_db_domain'          'i__db_domain_object_of'
  '_db_index'           'i__db_index_class_of'
  '_db_index_key'       'i__db_index_key_index_of'
  '_db_meth_arg'        'i__db_meth_arg_meth_sig_of'
  '_db_meth_file'       'i__db_meth_file_class_of'
  '_db_meth_sig'        'i__db_meth_sig_meth_of'
  '_db_method'          'i__db_method_class_of_meth_name'
  '_db_partition'       'i__db_partition_class_of_pname'
  '_db_query_spec'      'i__db_query_spec_class_of'
  '_db_stored_procedure'  'u__db_stored_procedure_sp_name'
  '_db_stored_procedure_args'  'i__db_stored_procedure_args_sp_name'
  'athlete'             'pk_athlete_code'
  'db_serial'           'pk_db_serial_name'
  'db_user'             'i_db_user_name'
  'event'               'pk_event_code'
  'game'                'pk_game_host_year_event_code_athlete_code'
  'game'                'fk_game_event_code'
  'game'                'fk_game_athlete_code'
  'history'             'pk_history_event_code_athlete'
  'nation'              'pk_nation_code'
  'olympic'             'pk_olympic_host_year'
  'participant'         'pk_participant_host_year_nation_code'
  'participant'         'fk_participant_host_year'
  'participant'         'fk_participant_nation_code'
  'record'              'pk_record_host_year_event_code_athlete_code_medal'
  'stadium'             'pk_stadium_code'

_db_index_key

Represents key information on an index. An index for index_of is created.

Attribute Name

Data Type

Description

index_of

_db_index

Index to which the key attribute belongs

key_attr_name

VARCHAR(255)

Name of the attribute that comprises the key

key_order

INTEGER

Order of the attribute in the key. Begins with 0.

asc_desc

INTEGER

1 if the order of attribute values is descending, and 0 otherwise.

key_prefix_length

INTEGER

Length of prefix to be used as a key

func

VARCHAR(255)

Functional expression of function based index

The following example shows how to retrieve the names of index that belongs to the class.

SELECT class_of.class_name, SEQUENCE(SELECT key_attr_name
                                     FROM _db_index_key k
                                     WHERE k in i.key_attrs)
FROM _db_index i
WHERE key_count >= 2;
  class_of.class_name   sequence((select key_attr_name from _db_index_key k where k in
i.key_attrs))
============================================
  '_db_partition'       {'class_of', 'pname'}
  '_db_method'          {'class_of', 'meth_name'}
  '_db_attribute'       {'class_of', 'attr_name'}
  'participant'         {'host_year', 'nation_code'}
  'game'                {'host_year', 'event_code', 'athlete_code'}
  'record'              {'host_year', 'event_code', 'athlete_code', 'medal'}
  'history'             {'event_code', 'athlete'}

_db_auth

Represents user authorization information of the class. An index for the grantee is created.

Attribute Name

Data Type

Description

grantor

db_user

Authorization grantor

grantee

db_user

Authorization grantee

class_of

_db_class

Class object to which authorization is to be granted

auth_type

VARCHAR(7)

Type name of the authorization granted

is_grantable

INTEGER

1 if authorization for the class can be granted to other users, and 0 otherwise.

Authorization types supported by CUBRID are as follows:

  • SELECT

  • INSERT

  • UPDATE

  • DELETE

  • ALTER

  • INDEX

  • EXECUTE

The following example shows how to retrieve authorization information defined in the class db_trig.

SELECT grantor.name, grantee.name, auth_type
FROM _db_auth
WHERE class_of.class_name = 'db_trig';
  grantor.name          grantee.name          auth_type
==================================================================
  'DBA'                 'PUBLIC'              'SELECT'

_db_data_type

Represents the data type supported by CUBRID (see the “Data Types Supported by CUBRID” table in _db_attribute).

Attribute Name

Data Type

Description

type_id

INTEGER

Data type identifier. Corresponds to the “Value” column in the “Data Types Supported by CUBRID” table.

type_name

VARCHAR(9)

Data type name. Corresponds to the “Meaning” column in the “Data Types Supported by CUBRID” table.

The following example shows how to retrieve attributes and type names of the event class.

SELECT a.attr_name, t.type_name
FROM _db_attribute a join _db_data_type t ON a.data_type = t.type_id
WHERE class_of.class_name = 'event'
ORDER BY a.def_order;
  attr_name             type_name
============================================
  'code'                'INTEGER'
  'sports'              'STRING'
  'name'                'STRING'
  'gender'              'CHAR'
  'players'             'INTEGER'

_db_partition

Represents partition information. Indexes for class_of and pname are created.

Attribute Name

Data Type

Description

class_of

_db_class

OID of the parent class

pname

VARCHAR(255)

Parent - NULL

ptype

INTEGER

0 - HASH 1 - RANGE 2 - LIST

pexpr

VARCHAR(255)

Parent only

pvalues

SEQUENCE OF

Parent - Column name, Hash size RANGE - MIN/MAX value : - Infinite MIN/MAX is stored as NULL LIST - value list

comment

VARCHAR(1024)

Comment to describe the partition

_db_stored_procedure

Represents Java stored procedure information. An index for sp_name is created.

Attribute Name

Data Type

Description

sp_name

VARCHAR(255)

Stored procedure name

sp_type

INTEGER

Stored procedure type (function or procedure)

return_type

INTEGER

Return value type

arg_count

INTEGER

The number of arguments

args

SEQUENCE OF _db_stored_procedure_args

Argument list

lang

INTEGER

Implementation language (currently, Java)

target

VARCHAR(4096)

Name of the Java method to be executed

owner

db_user

Owner

comment

VARCHAR (1024)

Comment to describe the stored procedure

_db_stored_procedure_args

Represents Java stored procedure argument information. An index for sp_name is created.

Attribute Name

Data Type

Description

sp_name

VARCHAR(255)

Stored procedure name

index_of

INTEGER

Order of the arguments

arg_name

VARCHAR(255)

Argument name

data_type

INTEGER

Data type of the argument

mode

INTEGER

Mode (IN, OUT, INOUT)

comment

VARCHAR (1024)

Comment to describe the argument

db_user

Attribute Name

Data Type

Description

name

VARCHAR(1073741823)

User name

id

INTEGER

User identifier

password

db_password

User password. Not displayed to the user.

direct_groups

SET OF db_user

Groups to which the user belongs directly

groups

SET OF db_user

Groups to which the user belongs directly or indirectly

authorization

db_authorization

Information of the authorization owned by the user

triggers

SEQUENCE OF object

Triggers that occur due to user actions

comment

VARCHAR (1024)

Comment to describe the user

Function Names

  • set_password ()

  • set_password_encoded ()

  • set_password_encoded_sha1 ()

  • add_member ()

  • drop_member ()

  • print_authorizations ()

  • add_user ()

  • drop_user ()

  • find_user ()

  • login ()

db_authorization

Attribute Name

Data Type

Description

owner

db_user

User information

grants

SEQUENCE OF object

Sequence of {object for which the user has authorization, authorization grantor of the object, authorization type}

Method Name

  • check_authorization (varchar(255), integer)

db_trigger

Attribute Name

Data Type

Description

owner

db_user

Trigger owner

name

VARCHAR(1073741823)

Trigger name

status

INTEGER

1 for INACTIVE, and 2 for ACTIVE. The default value is 2.

priority

DOUBLE

Execution priority between triggers. The default value is 0.

event

INTEGER

0 is set for UPDATE, 1 for UPDATE STATEMENT, 2 for DELETE, 3 for DELETE STATEMENT, 4 for INSERT, 5 for INSERT STATEMENT, 8 for COMMIT, and 9 for ROLLBACK.

target_class

object

Class object for the trigger target class

target_attribute

VARCHAR(1073741823)

Trigger target attribute name. If the target attribute is not specified, NULL* is used.

target_class_attribute

INTEGER

If the target attribute is an instance attribute, 0 is used. If it is a class attribute, 1 is used. The default value is 0.

condition_type

INTEGER

If a condition exist, 1; otherwise NULL.

condition

VARCHAR(1073741823)

Action condition specified in the IF statement

condition_time

INTEGER

1 for BEFORE, 2 for AFTER, and 3 for DEFERRED if a condition exists; NULL, otherwise.

action_type

INTEGER

1 for one of INSERT, UPDATE, DELETE, and CALL, 2 for REJECT, 3 for INVALIDATE_TRANSACTION, and 4 for PRINT.

action_definition

VARCHAR(1073741823)

Execution statement to be triggered

action_time

INTEGER

1 for BEFORE, 2 for AFTER, and 3 for DEFERRED.

comment

VARCHAR (1024)

Comment to describe the trigger

db_ha_apply_info

A table that stores the progress status every time the applylogdb utility applies replication logs. This table is updated at every point the applylogdb utility commits, and the accumulative count of operations are stored in the *_counter column. The meaning of each column is as follows:

Column Name

Column Type

Description

db_name

VARCHAR(255)

Name of the database stored in the log

db_creation_time

DATETIME

Creation time of the source database for the log to be applied

copied_log_path

VARCHAR(4096)

Path to the log file to be applied

committed_lsa_pageid

BIGINT

The page id of commit log lsa reflected last. Although applylogdb is restarted, the logs before last_committed_lsa are not reflected again.

committed_lsa_offset

INTEGER

The offset of commit log lsa reflected last. Although applylogdb is restarted, the logs before last_committed_lsa are not reflected again.

committed_rep_pageid

BIGINT

The page id of the replication log lsa reflected last. Check whether the reflection of replication has been delayed or not.

committed_rep_offset

INTEGER

The offset of the replication log lsa reflected last. Check whether the reflection of replication has been delayed or not.

append_lsa_page_id

BIGINT

The page id of the last replication log lsa at the last reflection. Saves append_lsa of the replication log header that is being processed by applylogdb at the time of reflecting the replication. Checks whether the reflection of replication has been delayed or not at the time of reflecting the replication log.

append_lsa_offset

INTEGER

The offset of the last replication log lsa at the last reflection. Saves append_lsa of the replication log header that is being processed by applylogdb at the time of reflecting the replication. Checks whether the reflection of replication has been delayed or not at the time of reflecting the replication log.

eof_lsa_page_id

BIGINT

The page id of the replication log EOF lsa at the last reflection. Saves eof_lsa of the replication log header that is being processed by applylogdb at the time of reflecting the replication. Checks whether the reflection of replication has been delayed or not at the time of reflecting the replication log.

eof_lsa_offset

INTEGER

The offset of the replication log EOF lsa at the last reflection. Saves eof_lsa of the replication log header that is being processed by applylogdb at the time of reflecting the replication. Checks whether the reflection of replication has been delayed or not at the time of reflecting the replication log.

final_lsa_pageid

BIGINT

The pageid of replication log lsa processed last by applylogdb. Checks whether the reflection of replication has been delayed or not.

final_lsa_offset

INTEGER

The offset of replication log lsa processed last by applylogdb. Checks whether the reflection of replication has been delayed or not.

required_page_id

BIGINT

The smallest page which should not be deleted by the log_max_archives parameter. The log page number from which the replication will be reflected.

required_page_offset

INTEGER

The offset of the log page from which the replication will be reflected.

log_record_time

DATETIME

Timestamp included in replication log committed in the slave database, i.e. the creation time of the log

log_commit_time

DATETIME

The time of reflecting the last commit log

last_access_time

DATETIME

The final update time of the db_ha_apply_info catalog

status

INTEGER

Progress status (0: IDLE, 1: BUSY)

insert_counter

BIGINT

Number of times that applylogdb was inserted

update_counter

BIGINT

Number of times that applylogdb was updated

delete_counter

BIGINT

Number of times that applylogdb was deleted

schema_counter

BIGINT

Number of times that applylogdb changed the schema

commit_counter

BIGINT

Number of times that applylogdb was committed

fail_counter

BIGINT

Number of times that applylogdb failed to be inserted/updated/deleted/committed and to change the schema

start_time

DATETIME

Time when the applylogdb process accessed the slave database

dual

The dual class is a one-row, one-column table that is used as a dummy table. It is used to select a constant, expression, or pseudo column such as SYS_DATE or USER. Pseudo columns can be provided as functions in CUBRID. More details and examples are in Operators and Functions. However, it is not mandatory to have FROM clause when selecting a constant, expression, or pseudo column because dual class will be referenced automatically. Like other system catalog classes, dual class is created to be owned by dba but dba can only execute SELECT operation. Unlike other system catalog classes, however, any user can execute SELECT operation on dual class.

Attribute Name

Data Type

Description

dummy

VARCHAR(1)

Value used for dummy purpose only

The following example shows the result which ran the query that select pseudo column after inputting “;plan detail” or “SET OPTIMIZATION LEVEL 513;” in CSQL (Viewing Query Plan). This shows the dual class is referenced automatically even if there is no FROM clause.

SET OPTIMIZATION LEVEL 513;
SELECT SYS_DATE;
Join graph segments (f indicates final):
seg[0]: [0]
Join graph nodes:
node[0]: dual dual(1/1) (loc -1)

Query plan:

  sscan
    class: dual node[0]
    cost:  1 card 1

Query stmt:

select  SYS_DATE  from dual dual

=== <Result of SELECT Command in Line 1> ===

        SYS_DATE
      ============
        11/26/2020

System Catalog Virtual Class

General users can only see information of classes for which they have authorization through system catalog virtual classes. This section explains which information each system catalog virtual class represents, and virtual class definition statements.

DB_CLASS

Represents information of classes for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

class_name

VARCHAR(255)

Class name

owner_name

VARCHAR(255)

Name of class owner

class_type

VARCHAR(6)

‘CLASS’ for a class, and ‘VCLASS’ for a virtual class

is_system_class

VARCHAR(3)

‘YES’ for a system class, and ‘NO’ otherwise.

tde_algorithm

VARCHAR(32)

TDE encryption algorithm

partitioned

VARCHAR(3)

‘YES’ for a partitioned group class, and ‘NO’ otherwise.

is_reuse_oid_class

VARCHAR(3)

‘YES’ for a REUSE_OID class, and ‘NO’ otherwise.

collation

VARCHAR(32)

Collation name

comment

VARCHAR(2048)

Comment to describe the class

The following example shows how to retrieve classes owned by the current user.

SELECT class_name
FROM db_class
WHERE owner_name = CURRENT_USER;
  class_name
======================
  'stadium'
  'code'
  'nation'
  'event'
  'athlete'
  'participant'
  'olympic'
  'game'
  'record'
  'history'
  'female_event'

The following example shows how to retrieve virtual classes that can be accessed by the current user.

SELECT class_name
FROM db_class
WHERE class_type = 'VCLASS';
  class_name
======================
  'db_stored_procedure_args'
  'db_stored_procedure'
  'db_partition'
  'db_trig'
  'db_auth'
  'db_index_key'
  'db_index'
  'db_meth_file'
  'db_meth_arg_setdomain_elm'
  'db_meth_arg'
  'db_method'
  'db_attr_setdomain_elm'
  'db_attribute'
  'db_vclass'
  'db_direct_super_class'
  'db_class'

The following example shows how to retrieve system classes that can be accessed by the current user(PUBLIC user).

SELECT class_name
FROM db_class
WHERE is_system_class = 'YES' AND class_type = 'CLASS'
ORDER BY 1;
  class_name
======================
  'db_authorization'
  'db_authorizations'
  'db_ha_apply_info'
  'db_root'
  'db_serial'
  'db_user'
  'dual'

DB_DIRECT_SUPER_CLASS

Represents the names of super classes (if any) of the class for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

class_name

VARCHAR(255)

Class name

super_class_name

VARCHAR(255)

super class name

The following example shows how to retrieve super classes of the female_event class (see ADD SUPERCLASS Clause).

SELECT super_class_name
FROM db_direct_super_class
WHERE class_name = 'female_event';
  super_class_name
======================
  'event'

The following example shows how to retrieve super classes of the class owned by the current user (PUBLIC user).

SELECT c.class_name, s.super_class_name
FROM db_class c, db_direct_super_class s
WHERE c.class_name = s.class_name AND c.owner_name = user
ORDER BY 1;
  class_name            super_class_name
============================================
  'female_event'        'event'

DB_VCLASS

Represents SQL definition statements of virtual classes for which the current user has access authorization to a database.

The data type of attribute ‘vclass_def’ is VARCHAR (4096) for prior versions including 10.1 Patch 3.

Attribute Name

Data Type

Description

Classification (10.1 Only)

vclass_name

VARCHAR(255)

Virtual class name

vclass_def

VARCHAR(1073741823)

SQL definition statement of the virtual class

10.1 Patch 4 or later

VARCHAR(4096)

10.1 Patch 3 or earlier

comment

VARCHAR(2048)

Comment to describe the virtual class

The following example shows how to retrieve SQL definition statements of the db_class virtual class.

SELECT vclass_def
FROM db_vclass
WHERE vclass_name = 'db_class';
  vclass_def
======================
  'SELECT [c].[class_name], CAST([c].[owner].[name] AS VARCHAR(255)), CASE [c].[class_type] WHEN 0 THEN 'CLASS' WHEN 1 THEN 'VCLASS' ELSE 'UNKNOW' END, CASE WHEN MOD([c].[is_system_class], 2) = 1 THEN 'YES' ELSE 'NO' END, CASE WHEN [c].[sub_classes] IS NULL THEN 'NO' ELSE NVL((SELECT 'YES' FROM [_db_partition] [p] WHERE [p].[class_of] = [c] and [p].[pname] IS NULL), 'NO') END, CASE WHEN MOD([c].[is_system_class] / 8, 2) = 1 THEN 'YES' ELSE 'NO' END FROM [_db_class] [c] WHERE CURRENT_USER = 'DBA' OR {[c].[owner].[name]} SUBSETEQ (  SELECT SET{CURRENT_USER} + COALESCE(SUM(SET{[t].[g].[name]}), SET{})  FROM [db_user] [u], TABLE([groups]) AS [t]([g])  WHERE [u].[name] = CURRENT_USER) OR {[c]} SUBSETEQ (  SELECT SUM(SET{[au].[class_of]}) FROM [_db_auth] [au]  WHERE {[au].[grantee].[name]} SUBSETEQ (  SELECT SET{CURRENT_USER} + COALESCE(SUM(SET{[t].[g].[name]}), SET{})  FROM [db_user] [u], TABLE([groups]) AS [t]([g])  WHERE [u].[name] = CURRENT_USER) AND  [au].[auth_type] = 'SELECT')'

DB_ATTRIBUTE

Represents the attribute information of a class for which the current user has access authorization in the database.

Attribute Name

Data Type

Description

attr_name

VARCHAR(255)

Attribute name

class_name

VARCHAR(255)

Name of the class to which the attribute belongs

attr_type

VARCHAR(8)

‘INSTANCE’ for an instance attribute, ‘CLASS’ for a class attribute, and ‘SHARED’ for a shared attribute.

def_order

INTEGER

Order of attributes in the class. Begins with 0. If the attribute is inherited, the order is the one defined in the super class.

from_class_name

VARCHAR(255)

If the attribute is inherited, the super class in which it is defined is used. Otherwise, NULL.

from_attr_name

VARCHAR(255)

If the attribute is inherited and its name is changed to resolve a name conflict, the original name defined in the super class is used. Otherwise, NULL.

data_type

VARCHAR(9)

Data type of the attribute (one in the “Meaning” column of the “Data Types Supported by CUBRID” table in _db_attribute)

prec

INTEGER

Precision of the data type. 0 is used if the precision is not specified.

scale

INTEGER

Scale of the data type. 0 is used if the scale is not specified.

charset

VARCHAR (32)

charset name

collation

VARCHAR (32)

collation name

domain_class_name

VARCHAR(255)

Domain class name if the data type is an object. NULL otherwise.

default_value

VARCHAR(255)

Saved as a character string by default, regardless of data types. If no default value is specified, NULL is stored. If a default value is NULL, it is displayed as ‘NULL’. An object data type is represented as ‘volume id | page id | slot id’ while a set data type is represented as ‘{element 1, element 2, … }’.

is_nullable

VARCHAR(3)

‘NO’ if a not null constraint is set, and ‘YES’ otherwise.

comment

VARCHAR(1024)

Comment to describe the attribute.

The following example shows how to retrieve attributes and data types of the event class.

SELECT attr_name, data_type, domain_class_name
FROM db_attribute
WHERE class_name = 'event'
ORDER BY def_order;
  attr_name             data_type             domain_class_name
==================================================================
  'code'                'INTEGER'             NULL
  'sports'              'STRING'              NULL
  'name'                'STRING'              NULL
  'gender'              'CHAR'                NULL
  'players'             'INTEGER'             NULL

The following example shows how to retrieve attributes of the female_event class and its super class.

SELECT attr_name, from_class_name
FROM db_attribute
WHERE class_name = 'female_event'
ORDER BY def_order;
  attr_name             from_class_name
============================================
  'code'                'event'
  'sports'              'event'
  'name'                'event'
  'gender'              'event'
  'players'             'event'

The following example shows how to retrieve classes whose attribute names are similar to name, among the ones owned by the current user. (The user is PUBLIC.)

SELECT a.class_name, a.attr_name
FROM db_class c join db_attribute a ON c.class_name = a.class_name
WHERE c.owner_name = CURRENT_USER AND attr_name like '%name%'
ORDER BY 1;
  class_name            attr_name
============================================
  'athlete'             'name'
  'code'                'f_name'
  'code'                's_name'
  'event'               'name'
  'female_event'        'name'
  'nation'              'name'
  'stadium'             'name'

DB_ATTR_SETDOMAIN_ELM

Among attributes of the class to which the current user has access authorization in the database, if an attribute’s data type is a collection (SET, MULTISET, SEQUENCE), this macro represents the data type of the element of the collection.

Attribute Name

Data Type

Description

attr_name

VARCHAR(255)

Attribute name

class_name

VARCHAR(255)

Name of the class to which the attribute belongs

attr_type

VARCHAR(8)

‘INSTANCE’ for an instance attribute, ‘CLASS’ for a class attribute, and ‘SHARED’ for a shared attribute.

data_type

VARCHAR(9)

Data type of the element

prec

INTEGER

Precision of the data type of the element

scale

INTEGER

Scale of the data type of the element

code_set

INTEGER

Character set if the data type of the element is a character

domain_class_name

VARCHAR(255)

Domain class name if the data type of the element is an object

If the set_attr attribute of class D is of a SET (A, B, C) type, the following three records exist.

Attr_name

Class_name

Attr_type

Data_type

Prec

Scale

Code_set

Domain_class_name

‘set_attr’

‘D’

‘INSTANCE’

‘SET’

0

0

0

‘A’

‘set_attr’

‘D’

‘INSTANCE’

‘SET’

0

0

0

‘B’

‘set_attr’

‘D’

‘INSTANCE’

‘SET’

0

0

0

‘C’

The following example shows how to retrieve collection type attributes and data types of the city class (the city table defined in Containment Operators is created).

SELECT attr_name, attr_type, data_type, domain_class_name
FROM db_attr_setdomain_elm
WHERE class_name = 'city';
  attr_name             attr_type             data_type             domain_class_name
==============================================================================

'sports'              'INSTANCE'            'STRING'              NULL

DB_CHARSET

Represents charset information.

Attribute name

Data type

Description

charset_id

INTEGER

Charset ID

charset_name

CHARACTER VARYING(32)

Charset name

default_collation

CHARACTER VARYING(32)

Default collation name

char_size

INTEGER

One character’s byte size

DB_COLLATION

The information on collation.

Attribute Name

Data Type

Description

coll_id

INTEGER

Collation ID

coll_name

VARCHAR(255)

Collation name

charset_name

VARCHAR(255)

Charset name

is_builtin

VARCHAR(3)

Built-in or not while installing the product(Yes, No)

has_expansions

VARCHAR(3)

Having expansion or not(Yes, No)

contractions

INTEGER

Whether to include abbreviation

uca_strength

VARCHAR(255)

Weight strength (Not applicable, Primary, Secondary, Tertiary, Quaternary, Identity, Unknown)

DB_METHOD

Represents method information of a class for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

meth_name

VARCHAR(255)

Method name

class_name

VARCHAR(255)

Name of the class to which the method belongs

meth_type

VARCHAR(8)

‘INSTANCE’ for an instance method, and ‘CLASS’ for a class method.

from_class_name

VARCHAR(255)

If the method is inherited, the super class in which it is defined is used otherwise NULL

from_meth_name

VARCHAR(255)

If the method is inherited and its name is changed to resolve a name conflict, the original name defined in the super class is used otherwise NULL

func_name

VARCHAR(255)

Name of the C function for the method

The following example shows how to retrieve methods of the db_user class.

SELECT meth_name, meth_type, func_name
FROM db_method
WHERE class_name = 'db_user'
ORDER BY meth_type, meth_name;
  meth_name             meth_type             func_name
==================================================================
  'add_user'            'CLASS'               'au_add_user_method'
  'drop_user'           'CLASS'               'au_drop_user_method'
  'find_user'           'CLASS'               'au_find_user_method'
  'login'               'CLASS'               'au_login_method'
  'add_member'          'INSTANCE'            'au_add_member_method'
  'drop_member'         'INSTANCE'            'au_drop_member_method'
  'print_authorizations'  'INSTANCE'            'au_describe_user_method'
  'set_password'        'INSTANCE'            'au_set_password_method'
  'set_password_encoded'  'INSTANCE'            'au_set_password_encoded_method'
  'set_password_encoded_sha1'  'INSTANCE'            'au_set_password_encoded_sha1_method'

DB_METH_ARG

Represents the input/output argument information of the method of the class for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

meth_name

VARCHAR(255)

Method name

class_name

VARCHAR(255)

Name of the class to which the method belongs

meth_type

VARCHAR(8)

‘INSTANCE’ for an instance method, and ‘CLASS’ for a class method.

index_of

INTEGER

Order in which arguments are listed in the function definition. Begins with 0 if it is a return value, and 1 if it is an input argument.

data_type

VARCHAR(9)

Data type of the argument

prec

INTEGER

Precision of the argument

scale

INTEGER

Scale of the argument

code_set

INTEGER

Character set if the data type of the argument is a character.

domain_class_name

VARCHAR(255)

Domain class name if the data type of the argument is an object.

The following example shows how to retrieve input arguments of the method of the db_user class.

SELECT meth_name, data_type, prec
FROM db_meth_arg
WHERE class_name = 'db_user';
  meth_name             data_type                    prec
=========================================================
  'append_data'         'STRING'               1073741823

DB_METH_ARG_SETDOMAIN_ELM

If the data type of the input/output argument of the method of the class is a set, for which the current user has access authorization in the database, this macro represents the data type of the element of the set.

Attribute Name

Data Type

Description

meth_name

VARCHAR(255)

Method name

class_name

VARCHAR(255)

Name of the class to which the method belongs

meth_type

VARCHAR(8)

‘INSTANCE’ for an instance method, and ‘CLASS’ for a class method.

index_of

INTEGER

Order of arguments listed in the function definition. Begins with 0 if it is a return value, and 1 if it is an input argument.

data_type

VARCHAR(9)

Data type of the element

prec

INTEGER

Precision of the element

scale

INTEGER

Scale of the element

code_set

INTEGER

Character set if the data type of the element is a character

domain_class_name

VARCHAR(255)

Domain class name if the data type of the element is an object

DB_METH_FILE

Represents information of a file in which the method of the class for which the current user has access authorization in the database is defined.

Attribute Name

Data Type

Description

class_name

VARCHAR(255)

Name of the class to which the method file belongs

path_name

VARCHAR(255)

File path in which the C function is defined

from_class_name

VARCHAR(255)

Name of the super class in which the method file is defined if the method is inherited, and otherwise NULL

DB_INDEX

Represents information of indexes created for the class for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

index_name

VARCHAR(255)

Index name

is_unique

VARCHAR(3)

‘YES’ for a unique index, and ‘NO’ otherwise.

is_reverse

VARCHAR(3)

‘YES’ for a reversed index, and ‘NO’ otherwise.

class_name

VARCHAR(255)

Name of the class to which the index belongs

key_count

INTEGER

The number of attributes that comprise the key

is_primary_key

VARCHAR(3)

‘YES’ for a primary key, and ‘NO’ otherwise.

is_foreign_key

VARCHAR(3)

‘YES’ for a foreign key, and ‘NO’ otherwise.

filter_expression

VARCHAR(255)

Conditions of filtered indexes

have_function

VARCHAR(3)

‘YES’ for function based and ‘NO’ otherwise.

comment

VARCHAR(1024)

Comment to describe the index

The following example shows how to retrieve index information of the class.

SELECT class_name, index_name, is_unique
FROM db_index
ORDER BY 1;
  class_name            index_name            is_unique
==================================================================
  'athlete'             'pk_athlete_code'     'YES'
  'city'                'pk_city_city_name'   'YES'
  'db_serial'           'pk_db_serial_name'   'YES'
  'db_user'             'i_db_user_name'      'NO'
  'event'               'pk_event_code'       'YES'
  'female_event'        'pk_event_code'       'YES'
  'game'                'pk_game_host_year_event_code_athlete_code'  'YES'
  'game'                'fk_game_event_code'  'NO'
  'game'                'fk_game_athlete_code'  'NO'
  'history'             'pk_history_event_code_athlete'  'YES'
  'nation'              'pk_nation_code'      'YES'
  'olympic'             'pk_olympic_host_year'  'YES'
  'participant'         'pk_participant_host_year_nation_code'  'YES'
  'participant'         'fk_participant_host_year'  'NO'
  'participant'         'fk_participant_nation_code'  'NO'
  'record'              'pk_record_host_year_event_code_athlete_code_medal'  'YES'
  'stadium'             'pk_stadium_code'     'YES'
...

DB_INDEX_KEY

Represents the key information of indexes created for the class for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

index_name

VARCHAR(255)

Index name

class_name

VARCHAR(255)

Name of the class to which the index belongs

key_attr_name

VARCHAR(255)

Name of attributes that comprise the key

key_order

INTEGER

Order of attributes in the key. Begins with 0.

asc_desc

VARCHAR(4)

‘DESC’ if the order of attribute values is descending, and ‘ASC’ otherwise.

key_prefix_length

INTEGER

The length of prefix to be used as a key

func

VARCHAR(255)

Functional expression of function based index

The following example shows how to retrieve index key information of the class.

SELECT class_name, key_attr_name, index_name
FROM db_index_key
ORDER BY class_name, key_order;
 'athlete'             'code'                'pk_athlete_code'
 'city'                'city_name'           'pk_city_city_name'
 'db_serial'           'name'                'pk_db_serial_name'
 'db_user'             'name'                'i_db_user_name'
 'event'               'code'                'pk_event_code'
 'female_event'        'code'                'pk_event_code'
 'game'                'host_year'           'pk_game_host_year_event_code_athlete_code'
 'game'                'event_code'          'fk_game_event_code'
 'game'                'athlete_code'        'fk_game_athlete_code'
...

DB_AUTH

Represents authorization information of classes for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

grantor_name

VARCHAR(255)

Name of the user who grants authorization

grantee_name

VARCHAR(255)

Name of the user who is granted authorization

class_name

VARCHAR(255)

Name of the class for which authorization is to be granted

auth_type

VARCHAR(7)

Name of the authorization type granted

is_grantable

VARCHAR(3)

‘YES’ if authorization for the class can be granted to other users, and ‘NO’ otherwise.

The following example how to retrieve authorization information of the classes whose names begin with db_a.

SELECT class_name, auth_type, grantor_name
FROM db_auth
WHERE class_name like 'db_a%'
ORDER BY 1;
  class_name            auth_type             grantor_name
==================================================================
  'db_attr_setdomain_elm'  'SELECT'             'DBA'
  'db_attribute'           'SELECT'             'DBA'
  'db_auth'                'SELECT'             'DBA'
  'db_authorization'       'EXECUTE'            'DBA'
  'db_authorization'       'SELECT'             'DBA'
  'db_authorizations'      'EXECUTE'            'DBA'
  'db_authorizations'      'SELECT'             'DBA'

DB_TRIG

Represents information of a trigger that has the class for which the current user has access authorization to a database, or its attribute as the target.

Attribute Name

Data Type

Description

trigger_name

VARCHAR(255)

Trigger name

target_class_name

VARCHAR(255)

Target class

target_attr_name

VARCHAR(255)

Target attribute. If not specified in the trigger, NULL

target_attr_type

VARCHAR(8)

Target attribute type. If specified, ‘INSTANCE’ is used for an instance attribute, and ‘CLASS’ is used for a class attribute.

action_type

INTEGER

1 for one of INSERT, UPDATE, DELETE, and CALL, 2 for REJECT, 3 for INVALIDATE_TRANSACTION, and 4 for PRINT.

action_time

INTEGER

1 for BEFORE, 2 for AFTER, and 3 for DEFERRED.

comment

VARCHAR(1024)

Comment to describe the trigger.

DB_PARTITION

Represents information of partitioned classes for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

class_name

VARCHAR(255)

Class name

partition_name

VARCHAR(255)

Partition name

partition_class_name

VARCHAR(255)

Partitioned class name

partition_type

VARCHAR(32)

Partition type (HASH, RANGE, LIST)

partition_expr

VARCHAR(255)

Partition expression

partition_values

SEQUENCE OF

RANGE - MIN/MAX value - For infinite MIN/MAX, NULL LIST - value list

comment

VARCHAR(1024)

Comment to describe the partition

The following example shows how to retrieve the partition information currently configured for the participant2 class.

SELECT * from db_partition where class_name = 'participant2';
  class_name            partition_name        partition_class_name         partition_type   partition_expr        partition_values
====================================================================================================================================
  'participant2'        'before_2000'         'participant2__p__before_2000'  'RANGE'       'host_year'           {NULL, 2000}
  'participant2'        'before_2008'         'participant2__p__before_2008'  'RANGE'       'host_year'           {2000, 2008}

DB_STORED_PROCEDURE

Represents information of Java stored procedure for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

sp_name

VARCHAR(255)

Stored procedure name

sp_type

VARCHAR(16)

Stored procedure type (function or procedure)

return_type

VARCHAR(16)

Return value type

arg_count

INTEGER

The number of arguments

lang

VARCHAR(16)

Implementing language (currently, Java)

target

VARCHAR(4096)

Name of the Java method to be executed

owner

VARCHAR(256)

Owner

comment

VARCHAR(1024)

Comment to describe the stored procedure

The following example shows how to retrieve Java stored procedures owned by the current user.

SELECT sp_name, target from db_stored_procedure
WHERE sp_type = 'FUNCTION' AND owner = CURRENT_USER;
  sp_name               target
============================================
  'hello'               'SpCubrid.HelloCubrid() return java.lang.String'
  'sp_int'              'SpCubrid.SpInt(int) return int'

DB_STORED_PROCEDURE_ARGS

Represents argument information of Java stored procedure for which the current user has access authorization to a database.

Attribute Name

Data Type

Description

sp_name

VARCHAR(255)

Stored procedure name

index_of

INTEGER

Order of the arguments

arg_name

VARCHAR(256)

Argument name

data_type

VARCHAR(16)

Data type of the argument

mode

VARCHAR(6)

Mode (IN, OUT, INOUT)

comment

VARCHAR(1024)

Comment to describe the argument

The following example shows how to retrieve arguments the ‘phone_info’ Java stored procedure in the order of the arguments.

SELECT index_of, arg_name, data_type, mode
FROM db_stored_procedure_args
WHERE sp_name = 'phone_info'
ORDER BY index_of;
     index_of  arg_name              data_type             mode
===============================================================
            0  'name'                'STRING'              'IN'
            1  'phoneno'             'STRING'              'IN'

Catalog Class/Virtual Class Authorization

Catalog classes are created to be owned by dba. However, dba can only execute SELECT operations. If dba executes operations such as UPDATE / DELETE, an authorization failure error occurs. General users cannot execute queries on system catalog classes.

Although catalog virtual classes are created to be owned by dba, all users can perform the SELECT statement on catalog virtual classes. Of course, UPDATE / DELETE operations on catalog virtual classes are not allowed.

Updating catalog classes/virtual classes is automatically performed by the system when users execute a DDL statement that creates/modifies/deletes a class/attribute/index/user/authorization.

Querying on Catalog

To query on catalog classes, you must convert identifiers such as class, virtual class, attribute, trigger, method and index names to lowercases, and create them. Therefore, you must use lowercases when querying on catalog classes. But, DB user name is changed as uppercases and stored into db_user system catalog table.

CREATE TABLE Foo(name varchar(255));
SELECT class_name, partitioned FROM db_class WHERE class_name = 'Foo';
There are no results.
SELECT class_name, partitioned FROM db_class WHERE class_name = 'foo';
  class_name   partitioned
============================
  'foo'       'NO'
CREATE USER tester PASSWORD 'testpwd';
SELECT name, password FROM db_user;
  name                  password
============================================
  'DBA'                 NULL
  'PUBLIC'              NULL
  'TESTER'              db_password
